Load cell VMD80

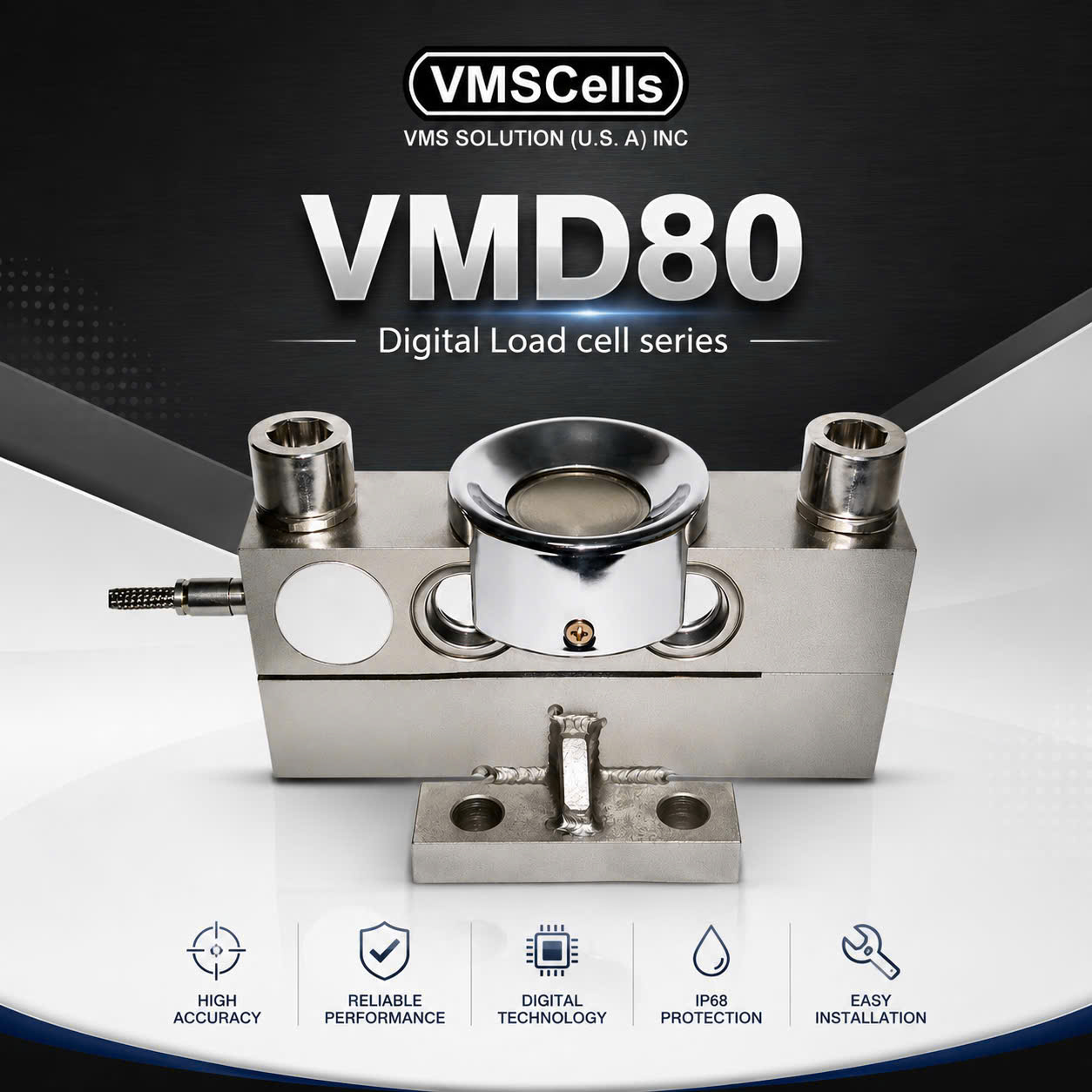

VMD80 – digital column type load cell with accuracy class C5
VMSF-D/DSS – column-type digital strain gauges are mainly used in the manufacture of automobile, railway conveyors, weighing containers, bunkers, silos and other weighing systems. Due to its compact size, high metrological characteristics (class C5) and low profile, this model has been widely used in many industrial weighing systems. The case of the load cell is made of stainless steel using laser welding, the protection class of the load cell is IP68 (full dust and moisture protection).
| Rated load (Еmax) | 20,30,40,50t | Rated sensitivity (ISN) | 500000 |
|---|---|---|---|
| Accuracy class OIML R60 | С5 | Resolving capacity | 100000 |
| Update rate (Hz) | 50 | Baud rate (BPS) | 9600 (19200) |
| Creep (30min) | ±0,01%/F.S. | Sensitivity temperature deviation | ±0,01%/10°С |
| Total error | ±0,01%/F.S. | Maximum permissible load | 150% F.S. |
| Operating temperature range | -30+70°С | Breaking load | 300% F.S. |
| Advisable voltage supply (V) | 7-15 | Housing material | Alloyed steel – A / Stainless steel – SS |
| Maximum transmission range (m) | 1200 | Protection class | IP68 |
